【SLE系列二位二通直動式關聯式電磁閥】-上海浦蝶閥門有限公司

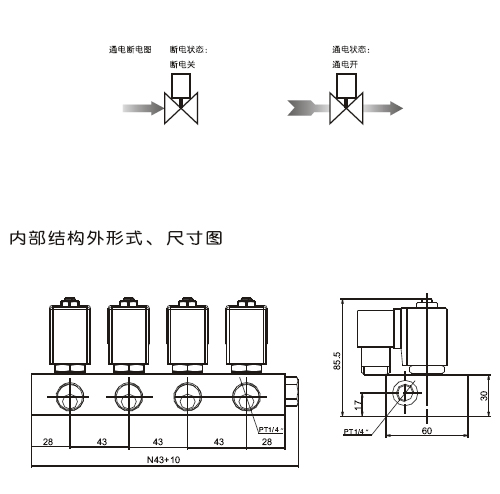

二位二通常閉型電磁閥,斷電關閉,通電打開
閥體材質為銅,鋁(定制) 環境溫度:0～65℃按閥上所標流向箭頭,一進多路出(N) 線圈可配德國原裝NASS線圈 常規備貨:AC220V/230/240V 50/60HZ 22VA ,24VA DC24V 13W
 型號規格 接管
口徑 | 流量
通徑
mm | CV值 | 壓力差（Kgf/cm2) | 最大
流體
溫度 | 線圈
配置 | 功率 | 線圈
等級 | 訂貨型號
以下表中
電壓為
220VAC
50/60HZ | | 最大工作壓力 | VA AC220V | W DC24V | 最小
壓力 | 空氣
瓦斯 | 水、熱水液體 | 輕油≤20CST | | AC220V | DC24V | AC220V | DC24V | AC220V | DC24V | | 1/8” | 2.0 | 0.15 | 0 | 20 | 20 | 20 | 15 | 15 | 10 | 120 | D | 22 | 13 | F | SLE1DF02V1A02 | | 3.0 | 0.23 | 0 | 10 | 10 | 10 | 10 | 7 | 7 | 120 | D | 22 | 13 | F | SLE1DF02V1A03 | | 4.0 | 0.44 | 0 | 7 | 7 | 7 | 5 | 5 | 5 | 120 | D | 22 | 13 | F | SLE1DF02V1A04 | | 5.0 | 0.5 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2.5 | 120 | D | 22 | 13 | F | SLE1DF02V1A05 | | 1/4” | 2.0 | 0.15 | 0 | 20 | 20 | 20 | 15 | 15 | 10 | 120 | D | 22 | 13 | F | SLE1DF02V1B02 | | 3.0 | 0.23 | 0 | 13 | 13 | 13 | 10 | 7 | 5 | 120 | D | 22 | 13 | F | SLE1DF02V1B03 | | 4.0 | 0.44 | 0 | 7 | 7 | 7 | 5 | 5 | 5 | 120 | D | 22 | 13 | F | SLE1DF02V1B04 | | 5.0 | 0.5 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2.5 | 120 | D | 22 | 13 | F | SLE1DF02V1B05 | | 6.0 | 0.8 | 0 | 3 | 3 | 3 | 1.5 | 2 | 1 | 120 | D | 22 | 13 | F | SLE1DF02V1B06 | | 3/8” | 5.0 | 0.5 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2.5 | 120 | D | 22 | 13 | F | SLE1DF02V1C05 | | 6.0 | 0.8 | 0 | 3 | 3 | 3 | 1.5 | 2 | 1 | 120 | D | 22 | 13 | F | SLE1DF02V1C06 | | 9.0 | 1.65 | 0 | 1 | 1 | 0.8 | 0.4 | 0.5 | 0.3 | 120 | D | 22 | 13 | F | SLE1DF02V1C09 | | 1/2” | 5.0 | 0.5 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2.5 | 120 | D | 22 | 13 | F | SLE1DF02V1D05 | | 6.0 | 0.8 | 0 | 3 | 3 | 3 | 1.5 | 2 | 1 | 120 | D | 22 | 13 | F | SLE1DF02V1D06 | | 9.0 | 1.65 | 0 | 1 | 1 | 0.8 | 0.4 | 0.5 | 0.3 | 120 | D | 22 | 13 | F | SLE1DF02V1D09 |
SLE系列線圈參數表 | 線圈型式和編號 | 電壓 | 功率 | 所配電磁閥 | | 50HZ VA | 60HZ VA | 直流 | | 起動 | 保持 | 起動 | 保持 | W | | D04-3101 | AC220V | 55 | 22 | 55 | 22 | | SLE常閉系列 | D04-3104
| AC24V | 45 | 18 | 45 | 18 | | D04-3106 | DC24V | | 13 | | D04-3107 | DC12V | 13 |
