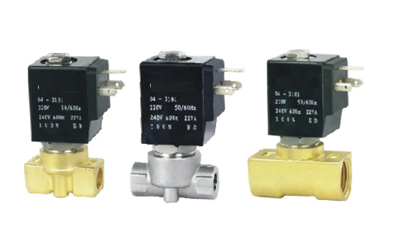

【SLP二位二通微型系列直動式電磁閥（常閉型）】-上海浦蝶閥門有限公司
二位二通常閉型電磁閥,斷電關閉,通電打開;產品為系列化生產,體積小,流量大,適用范圍廣
閥體材質為:鍛銅、SS316不銹鋼 環境溫度:0℃～65℃ 介質溫度:0℃～130℃ 安裝 :按閥上所標流向箭頭,可任意安裝.為增強使用壽命,最好線圈向上,水平安裝 電壓：AC24V/110V/220V/230V/240V 50/60HZ DC24V/12V ±10%允許波動可選配德國NASS線圈 防爆線圈:合格證號:GYB03616X 防爆標志:ExmI//‖T4 符合標準: GB3836.1-2000、GB3836.9-1990 密封件:可采用NBR、VITON、EPDM等多種，以適用不同流體的開關控制。  型號規格
接管
口徑 | 流量
通徑
mm | CV值 | 壓力差（Kgf/cm2) | 最大
溫度
℃ | 線圈
配置 | 功率 | 線圈等級 | 訂貨型號規格以下表中
型號規格電壓是220VAC | 重量KG | 最小
壓力 | 最大工作壓力 | VA | W | 空氣
瓦斯 | 水、熱水液體 | 輕油≤20CST | AC220V | DC24V | 閥體材料 | | AC | DC | AC | DC | AC | DC | 鍛銅 | 不銹鋼SS316 | | 1/8” | 3 | 0.23 | 0 | 13 | 13 | 13 | 13 | 10 | 10 | 80 | D | 22 | 13 | F | SLP1DF02N1A03 | SLP1DF02N3A03 | 0.37 | | 3 | 0.23 | 0 | 13 | 13 | 13 | 13 | | | 130 | D | 22 | 13 | F | SLP1DF02E1A03 | SLP1DF02E3A03 | 0.37 | | 3 | 0.23 | 0 | 13 | 13 | 13 | 13 | 10 | 10 | 120 | D | 22 | 13 | F | SLP1DF02V1A03 | SLP1DF02V3A03 | 0.37 | | 5 | 0.65 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2 | 80 | D | 22 | 13 | F | SLP1DF02N1A05 | SLP1DF02N3A05 | 0.36 | | 5 | 0.65 | 0 | 4 | 2.5 | 4 | 2.5 | | | 130 | D | 22 | 13 | F | SLP1DF02E1A05 | SLP1DF02E3A05 | 0.36 | | 5 | 0.65 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2 | 120 | D | 22 | 13 | F | SLP1DF02V1A05 | SLP1DF02V3A05 | 0.36 | | 6 | 0.8 | 0 | 3 | 2 | 3 | 2 | 2.5 | 2 | 80 | D | 22 | 13 | F | SLP1DF02N1A06 | SLP1DF02N3A06 | 0.36 | | 6 | 0.8 | 0 | 3 | 2 | 3 | 2 | | | 130 | D | 22 | 13 | F | SLP1DF02E1A06 | SLP1DF02E3A06 | 0.36 | | 6 | 0.8 | 0 | 3 | 2 | 3 | 2 | 2.5 | 2 | 120 | D | 22 | 13 | F | SLP1DF02V1A06 | SLP1DF02V3A06 | 0.36 | | 1/4” | 3 | 0.23 | 0 | 13 | 13 | 13 | 13 | 10 | 10 | 80 | D | 22 | 13 | F | SLP1DF02N1B03 | SLP1DF02N3A03 | 0.36 | | 3 | 0.23 | 0 | 13 | 13 | 13 | 13 | | | 130 | D | 22 | 13 | F | SLP1DF02E1B03 | SLP1DF02E3A03 | 0.36 | | 3 | 0.23 | 0 | 13 | 13 | 13 | 13 | 10 | 10 | 120 | D | 22 | 13 | F | SLP1DF02V1B03 | SLP1DF02V3A03 | 0.36 | | 5 | 0.65 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2 | 80 | D | 22 | 20 | F | SLP1DF02N1B05 | SLP1DF02N3A05 | 0.35 | | 5 | 0.65 | 0 | 4 | 2.5 | 4 | 2.5 | | | 130 | D | 22 | 13 | F | SLP1DF02E1B05 | SLP1DF02E3A05 | 0.35 | | 5 | 0.65 | 0 | 4 | 2.5 | 4 | 2.5 | 2.5 | 2 | 120 | D | 22 | 13 | F | SLP1DF02V1B05 | SLP1DF02V3A05 | 0.35 | | 6 | 0.8 | 0 | 3 | 2 | 3 | 2 | 2.5 | 2 | 80 | D | 22 | 13 | F | SLP1DF02N1B06 | SLP1DF02N3A06 | 0.35 | | 6 | 0.8 | 0 | 3 | 2 | 3 | 2 | | | 130 | D | 22 | 13 | F | SLP1DF02E1B06 | SLP1DF02E3A06 | 0.35 | | 6 | 0.8 | 0 | 3 | 2 | 3 | 2 | 2.5 | 2 | 120 | D | 22 | 13 | F | SLP1DF02V1B06 | SLP1DF02V3A06 | 0.35 | | 3/8” | 5 | 0.65 | 0 | 7 | 2.5 | 4 | 2.5 | 2.5 | 2 | 80 | D | 22 | 13 | F | SLP1DF02N1C05 | SLP1DF02N3A05 | 0.46 | | 5 | 0.65 | 0 | 7 | 2.5 | 4 | 2.5 | | | 130 | D | 22 | 13 | F | SLP1DF02E1C05 | SLP1DF02E3A05 | 0.46 | | 5 | 0.65 | 0 | 7 | 2.5 | 4 | 2.5 | 2.5 | 2 | 120 | D | 22 | 13 | F | SLP1DF02V1C05 | SLP1DF02V3A05 | 0.46 | | 6 | 0.8 | 0 | 5 | 2 | 3 | 2 | 2.5 | 2 | 80 | D | 22 | 13 | F | SLP1DF02N1C06 | SLP1DF02N3A06 | 0.46 | | 6 | 0.8 | 0 | 5 | 2 | 3 | 2 | | | 130 | N | 22 | 13 | F | SLP1DF02E1C06 | SLP1DF02E3A06 | 0.46 | | 6 | 0.8 | 0 | 5 | 2 | 3 | 2 | 2.5 | 2 | 120 | D | 22 | 13 | F | SLP1DF02V1C06 | SLP1DF02V3A06 | 0.46 | | 1/2” | 5 | 0.65 | 0 | 6 | 2.5 | 4 | 2.5 | 2.5 | 2 | 80 | D | 22 | 13 | F | SLP1DF02N1D05 | SLP1DF02N3A05 | 0.43 | | 5 | 0.65 | 0 | 6 | 2.5 | 4 | 2.5 | | | 130 | D | 22 | 13 | F | SLP1DF02E1D05 | SLP1DF02E3A05 | 0.43 | | 5 | 0.65 | 0 | 6 | 2.5 | 4 | 2.5 | 2.5 | 2 | 120 | D | 22 | 13 | F | SLP1DF02V1D05 | SLP1DF02V3A05 | 0.43 | | 6 | 0.8 | 0 | 4 | 2 | 3 | 2 | 2.5 | 2 | 80 | D | 22 | 13 | F | SLP1DF02N1D06 | SLP1DF02N3A06 | 0.43 | | 6 | 0.8 | 0 | 4 | 2 | 3 | 2 | | | 130 | D | 22 | 13 | F | SLP1DF02E1D06 | SLP1DF02E3A06 | 0.43 | | 6 | 0.8 | 0 | 4 | 2 | 3 | 2 | 2.5 | 2 | 120 | D | 22 | 13 | F | SLP1DF02V1D06 | SLP1DF02V3A06 | 0.43 |
