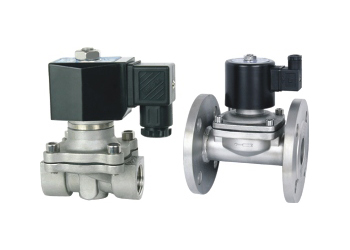

【ZS不銹鋼系列二位二通零壓差電磁閥（常閉型）】-上海浦蝶閥門有限公司
二位二通常閉型電磁閥,斷電關閉,通電打開 閥體材質為銅,SS304不銹鋼,SS316不銹鋼 最大耐壓力16kgf/cm/2 環境溫度:0℃～65℃ 產品為系列化生產,體積小,流量大,適用范圍廣 按閥上所標流向箭頭,可任意安裝;為增強使用壽命,最好線圈向上,水平安裝 電壓：AC220V/230V/240V/110V/24V 50/60HZ DC24V/12V +10%到-10%允許波動 DN25以下電磁閥可選配德國NASS線圈 常規備貨：AC220V/230V/240V 50/60HZ、DC24V膜片、密封件，可采用NBR、VITON、EPDM等多種，以適用不同流體的開關控制。 型號規格 接管
口徑 | 流量
通徑
mm | CV值 | 壓力差（Kgf/cm2) | 最大
流體

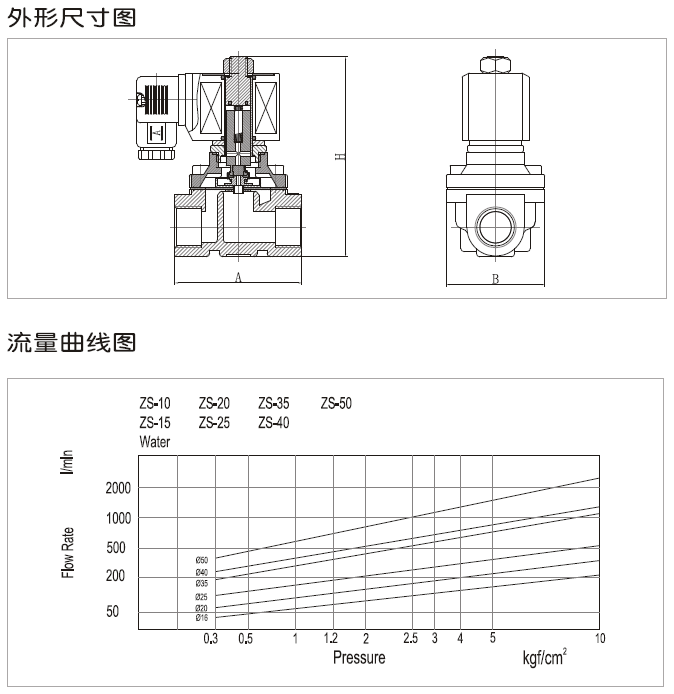

溫度 | 線圈 | 功率 | 外行尺寸 長×寬×高 A×B×H | 重量KG | 訂貨型號
以下表中
電壓為
220VAC
50/60HZ | | 最小壓力 | 最大工作壓力 | 空氣
瓦斯 | 水、熱
水液體 | 輕油 | F 級 | VA | W | | AC | DC | AC | DC | AC | DC | 配置 | AC220V | DC24V | | 3/8” | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 69×57×106 | 0.8 | ZS1DF02N4C16 | | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 69×57×106 | 0.8 | ZS1DF02E4C16 | | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 69×57×106 | 0.8 | ZS1DF02V4C16 | | 16 | 4.8 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 69×57×106 | 0.8 | ZS1DF02G4C16 | | 1/2” | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 69×57×106 | 0.85 | ZS1DF02N4D16 | | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 69×57×106 | 0.85 | ZS1DF02E4D16 | | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 69×57×106 | 0.85 | ZS1DF02V4D16 | | 16 | 4.8 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 69×57×106 | 0.85 | ZS1DF02G4D16 | | 3/4” | 20 | 7.6 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 73×57×114 | 1.1 | ZS1DF02N4E20 | | 20 | 7.6 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 73×57×114 | 1.1 | ZS1DF02E4E20 | | 20 | 7.6 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 73×57×114 | 1.1 | ZS1DF02V4E20 | | 20 | 7.6 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 73×57×114 | 1.1 | ZS1DF02G4E20 | | 1” | 25 | 12 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 99×77×121 | 1.45 | ZS1DF02N4G25 | | 25 | 12 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 99×77×121 | 1.45 | ZS1DF02E4G25 | | 25 | 12 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 99×77×121 | 1.45 | ZS1DF02V4G25 | | 25 | 12 | 0 | 10 | 6 | 3 | 3 | | | 120 | D | 33 | 20 | 99×77×121 | 1.45 | ZS1DF02G4G25 | | 11/4” | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 112×86.5×150 | 2.3 | ZS1DF02N4H32 | | 32 | 24 | 0 | 10 | 6 | 10 | | | | 120 | D | 70 | 40 | 112×86.5×150 | 2.3 | ZS1DF02E4H32 | | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 7 | 120 | D | 70 | 40 | 112×86.5×150 | 2.3 | ZS1DF02V4H32 | | 11/2” | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 123×94×160 | 2.9 | ZS1DF02N4J40 | | 40 | 29 | 0 | 10 | 6 | 10 | | | | 120 | D | 70 | 40 | 123×94×160 | 2.9 | ZS1DF02E4J40 | | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | 7 | 120 | D | 70 | 40 | 123×94×160 | 2.9 | ZS1DF02V4J40 | | 2” | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 168×123×183 | 4.8 | ZS1DF02N4K50 | | 50 | 48 | 0 | 10 | | 10 | 6 | | | 120 | D | 70 | 40 | 168×123×183 | 4.8 | ZS1DF02E4K50 | | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 168×123×183 | 4.8 | ZS1DF02V4K50 | | 法蘭4孔連接 | 25 | 12 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 140×115×160 | 2.9 | ZS1DF02N4F25 | | 25 | 12 | 0 | 10 | 6 | 10 | | | | 120 | D | 33 | 20 | 140×115×160 | 2.9 | ZS1DF02E4F25 | | 25 | 12 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 140×115×160 | 2.9 | ZS1DF02V4F25 | | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 152×135×215 | 5.1 | ZS1DF02N4F32 | | 32 | 24 | 0 | 10 | 6 | 10 | | | | 120 | D | 70 | 40 | 152×135×215 | 5.1 | ZS1DF02E4F32 | | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 152×135×215 | 5.1 | ZS1DF02V4F32 | | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | | 80 | D | 70 | 40 | 152×145×215 | 6.1 | ZS1DF02N4F40 | | 40 | 29 | 0 | 10 | 6 | 10 | | | | 120 | D | 70 | 40 | 152×145×215 | 6.1 | ZS1DF02E4F40 | | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | | 120 | D | 70 | 40 | 152×145×215 | 6.1 | ZS1DF02V4F40 | | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 195×160×220 | 8.2 | ZS1DF02N4F50 | | 50 | 48 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 195×160×220 | 8.2 | ZS1DF02E4F50 | | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 195×160×220 | 8.2 | ZS1DF02V4F50 |
【ZS不銹鋼系列二位二通零壓差電磁閥（常閉型）】【價格】【參數】【供應信息】請來電詳詢 |
